Wagon Tongue Lift Spring Kit

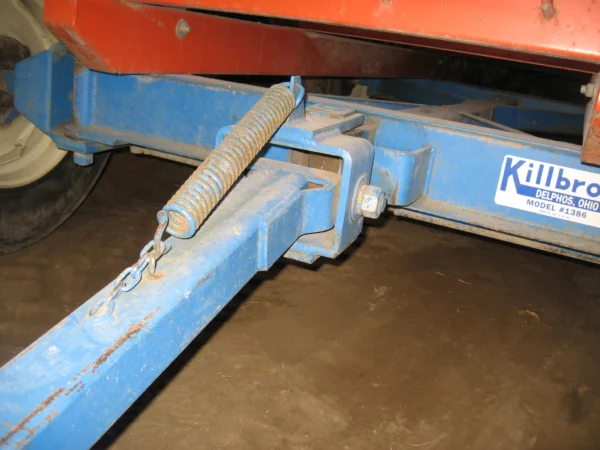

A wagon tongue lift spring kit holds a wagon tongue up off the ground so a worker with a back injury can hitch the wagon without straining his back.

Description

A wagon tongue lift spring kit holds a wagon tongue up off the ground so a worker with a back injury can hitch the wagon without straining his back. Lifting wagon tongues to hitch wagons to tractors may need to be repeated 40 times per day during busy harvest seasons. It requires stooping down and lifting the heavy, often 70-lb, wagon tongue with one arm, then inserting the hitch pin with the other.



Workers with common conditions such as these would benefit from a Wagon Tongue Lift Kit.

Arm Amputation

Back Injury

Back Pain

Fused Vertebrae

Herniated Disc

Lumbar/Low Back Pain

Multiple Sclerosis

Neuropathy

Rotator Cuff Injury

Ruptured Disc

Scoliosis, Kyphosis, Lordosis

Shoulder Replacement

Slipped Disc

Ankylosing Spondylitis

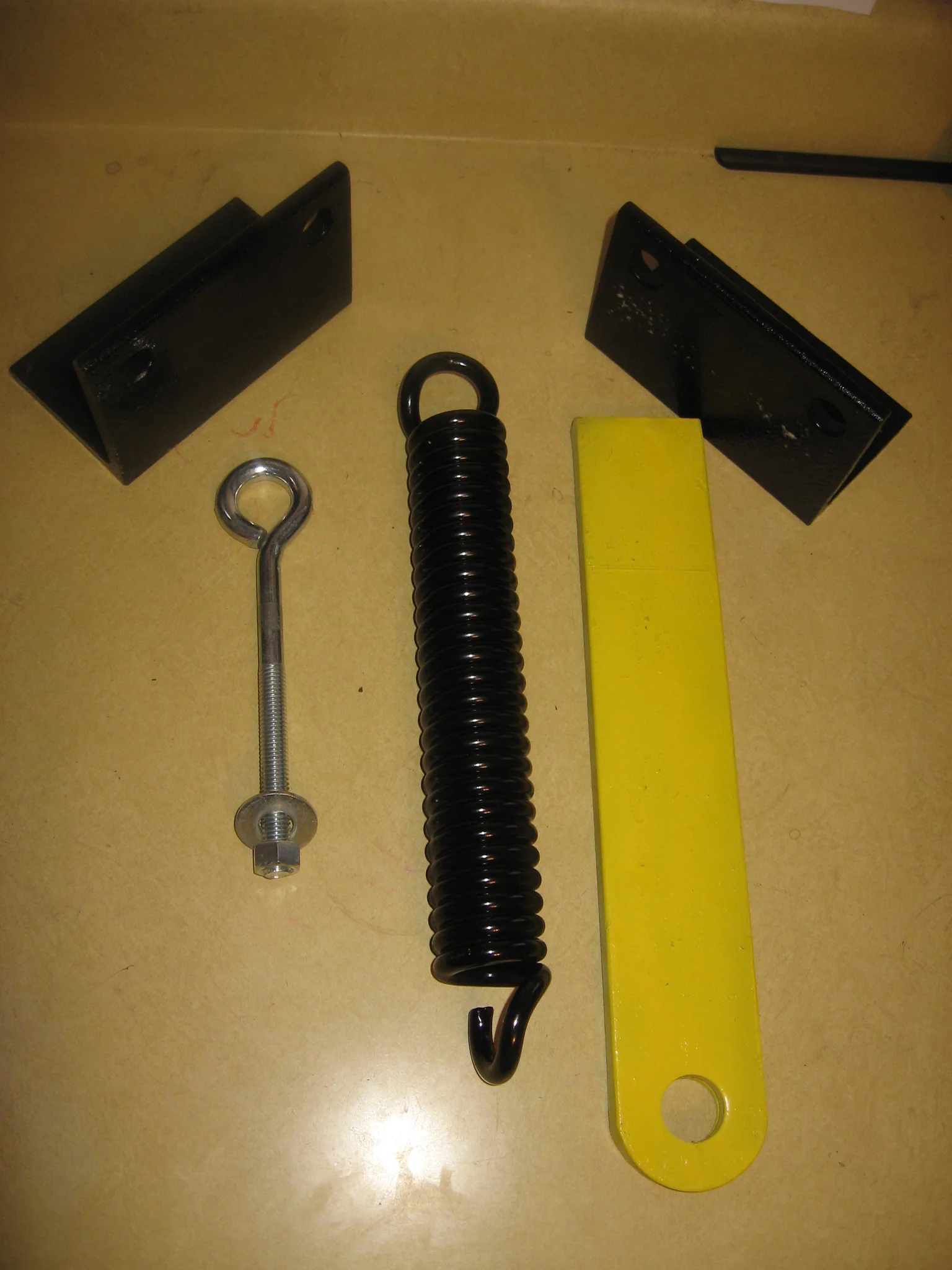

Kit Contents:

(1) heavy duty lift spring

(2) brackets

(1) tension bolt

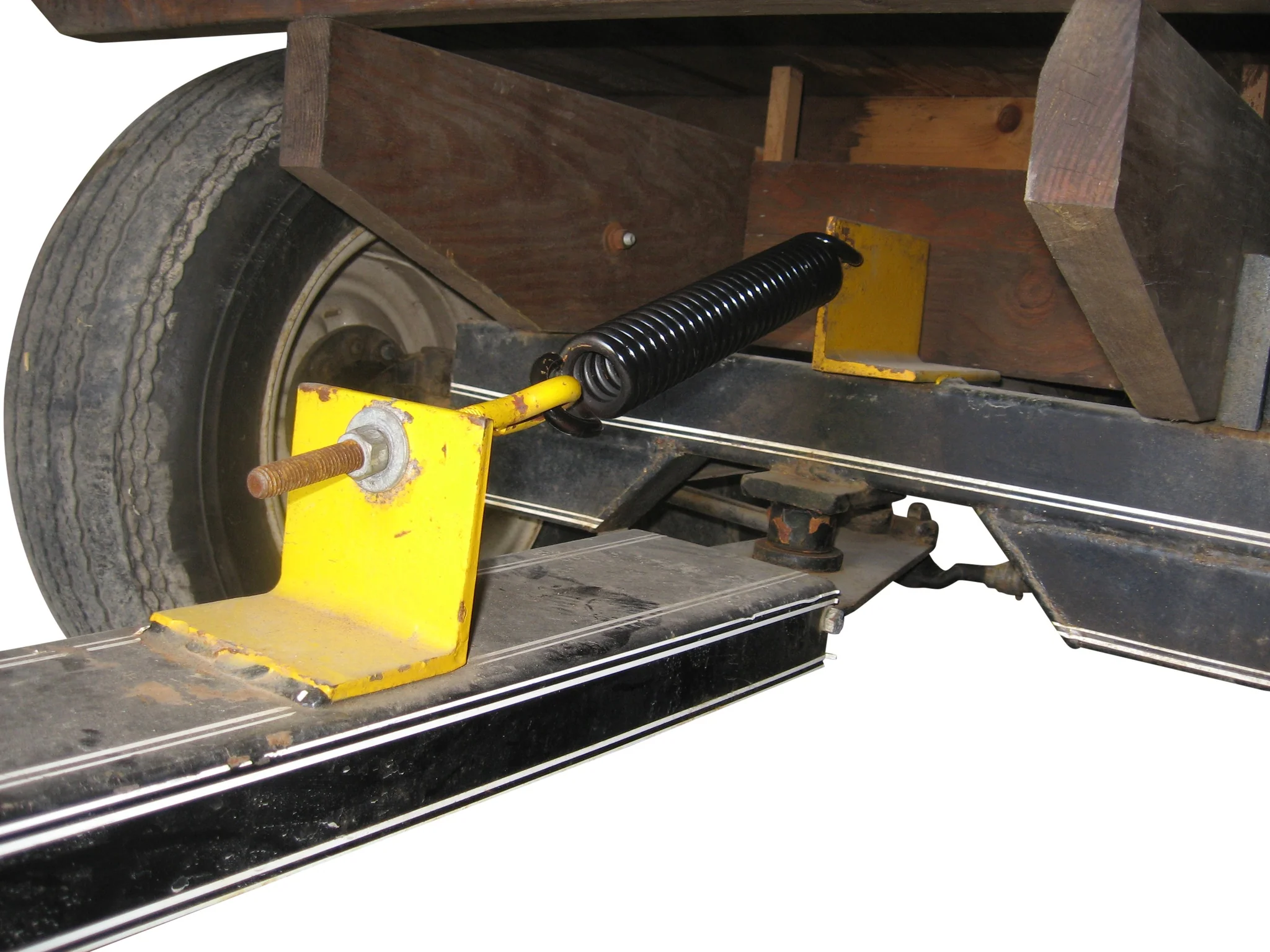

One bracket is welded to the wagon tongue, the other is welded to the wagon frame, and the tension bolt is tightened as needed to tension the spring and hold the wagon tongue at the desired height.

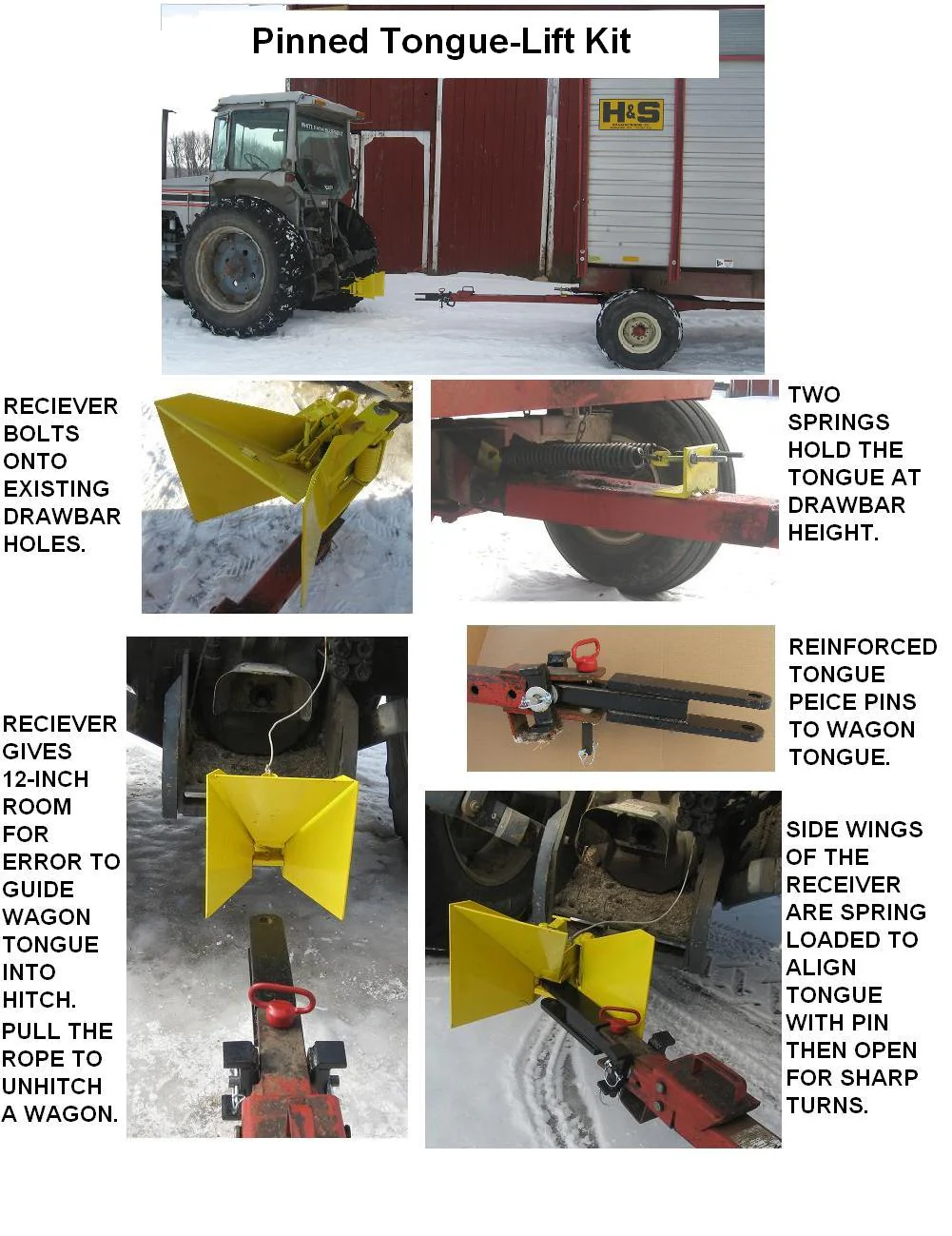

Works with :  Sta-Fast wagon quick hitch
