Automatic Rebar Tie Gun

Description

Concrete and construction work often requires rebar to be placed while pouring concrete. Connecting the rebar is done by placing rebar wire at points on the rebar. This is done by twisting the wire using a pair of pliers, then cutting the wire.

Workers with hand, arm, and shoulder disabilities often struggle to complete this task.

An Automatic Rebar Tier will tie the rebar with a pull of the trigger. A worker with carpal tunnel or arthritis will find it much easier to tie rebar during building projects.

s, Workers with common conditions such as these would benefit from an Automatic Rebar Tier: Aging, Carpal Tunnel Syndrome/Repetitive Motion Injury, Diabetes/Diabetic Neuropathy, Hand Injury, Multiple Sclerosis (MS), Muscular Dystrophy, Rheumatoid Arthritis (hands, wrists, knees & feet), Degenerative Joint Disease.

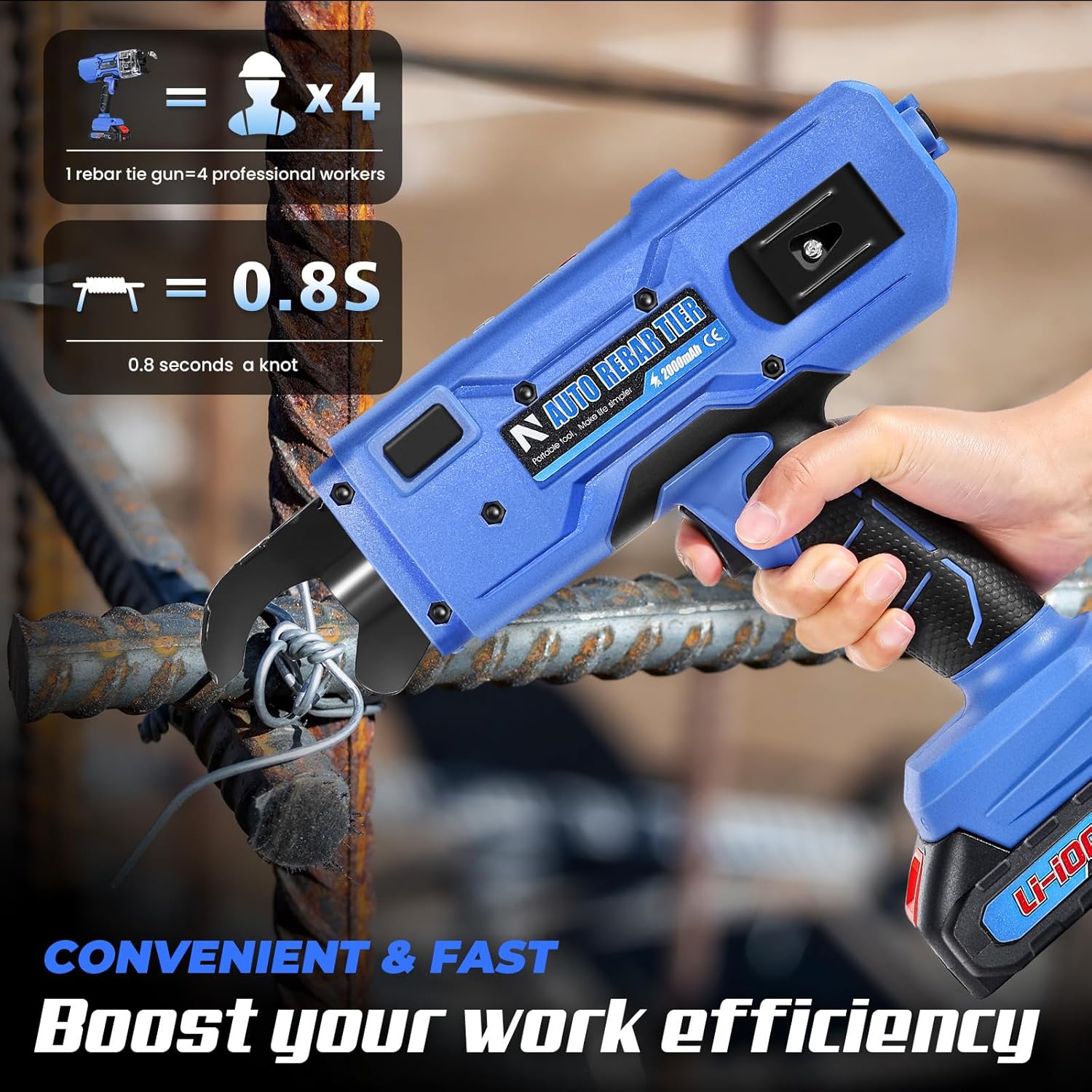

[Fast Tying Speed]—Experience a dramatic boost in efficiency with our automatic rebar tie gun. It completes a secure knot in just 0.8 seconds, achieving 38 to 42 knots per minute. This remarkable speed allows one operator to handle the output equivalent of multiple manual workers, significantly accelerating project timelines and reducing labor costs. For optimal performance when installing a new coil, we recommend testing a few knots to ensure everything is functioning smoothly.

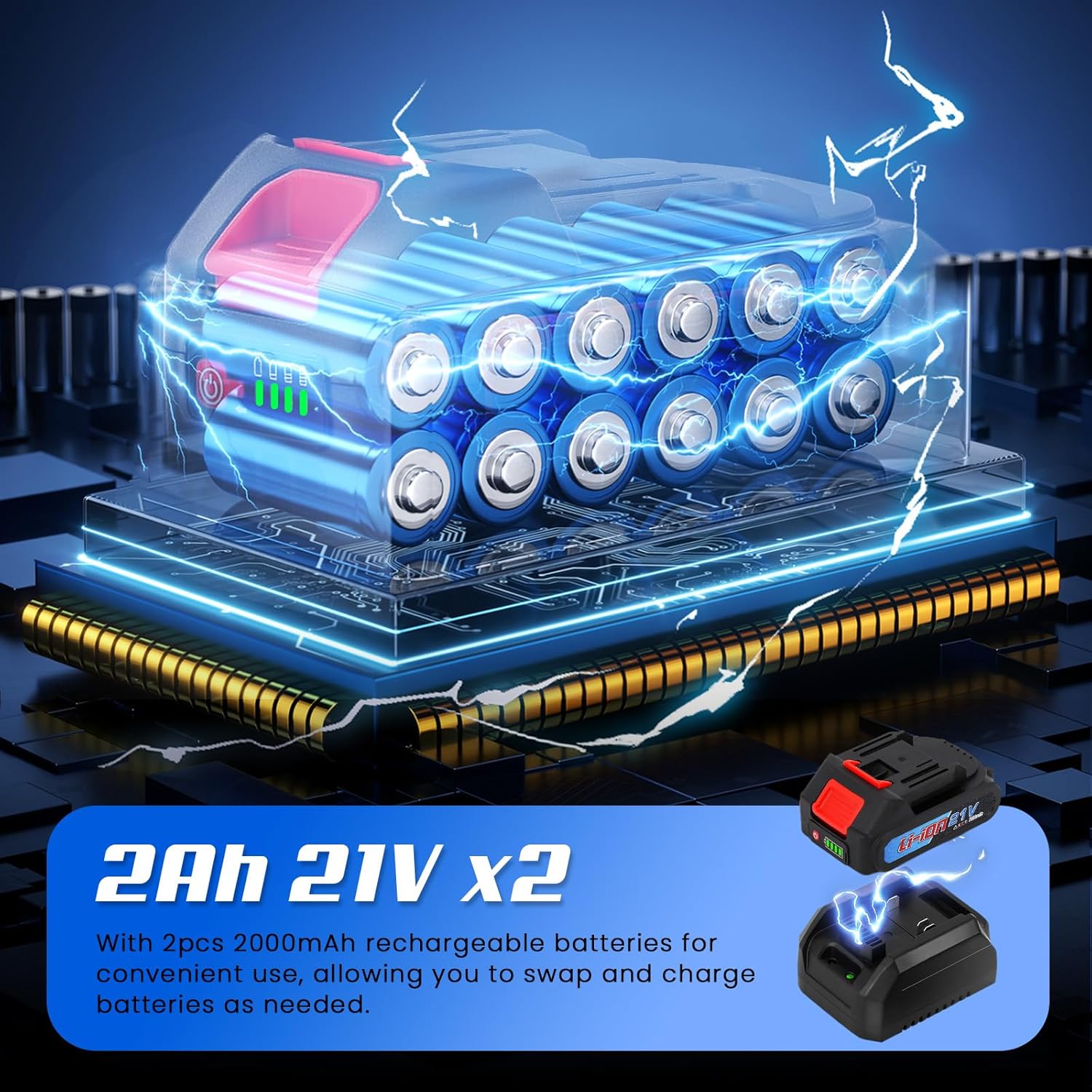

[Dual-Battery System for Continuous Operation]—Never worry about power downtime on the job site. This cordless rebar tie gun comes equipped with two powerful 2000mAh lithium-ion batteries and a charger. While one battery is in use, the other can be charging, ensuring you can work without interruption. A full charge takes approximately 2 hours, providing the convenience and mobility you need to work effectively, free from the hassle of power cords.

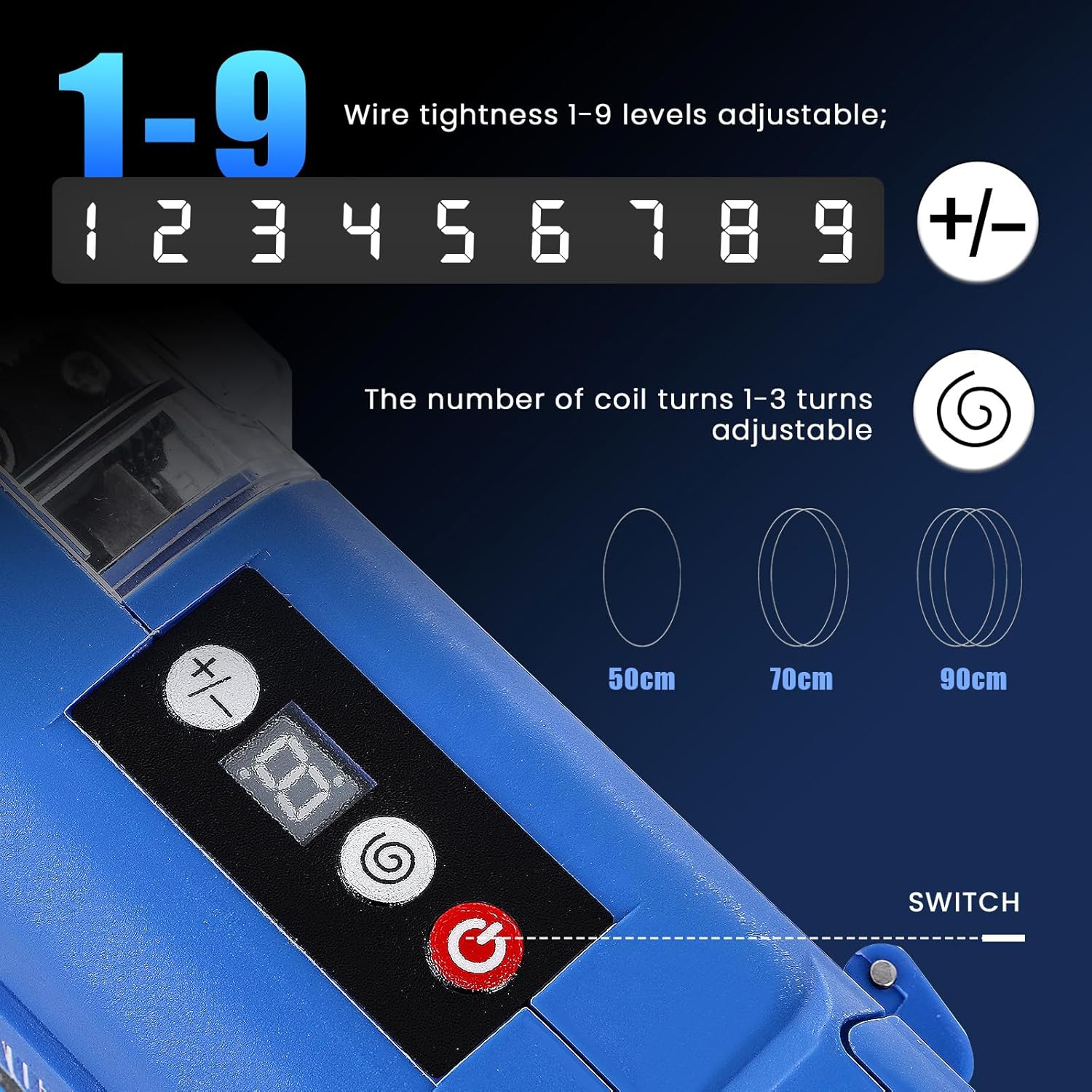

[Adjustable for Precision & Versatility]—Gain complete control over your tying tasks with our 9-gear adjustable tightness system. Simply dial from level 1 to 9 to apply the perfect tying power for different rebar applications. Additionally, you can adjust the number of knotted loops (from 1 to 3 turns) to suit specific project requirements. This versatility ensures a secure and custom fit for steel bars within the 0.3-inch to 1.33-inch diameter range, handling various tasks with ease.
[Advanced Engineering for Enhanced Durability]—Built for professional use, this rebar tying tool features a robust brushless motor that delivers strong, reliable power while reducing heat loss and minimizing potential faults, thereby extending the motor’s overall lifespan. Furthermore, the innovative transparent shell design allows for easy visual inspection of the wire feed track, simplifying the coil installation process and helping to prevent and quickly resolve feeding issues.
[Comprehensive Specifications]—Input Voltage: AC 100-240V (for the charger); Output Voltage: 21V; Compatible Rebar Diameter: 0.3″ to 1.33″ (7-34mm); Battery: Two 2000mAh units included; Tying Speed: 0.8 seconds per knot (38-42 knots/minute); Full Charge Time: Approximately 2 hours; Wire Coil Length: 360 feet per spool; Tool Weight: A portable 3.2 lbs for comfortable all-day use.
